• ·Îµå¼¿

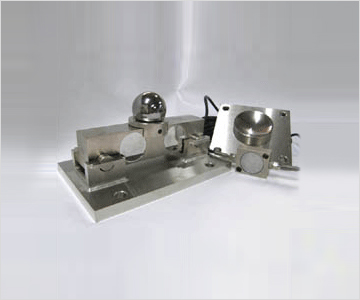

TSN Æ®·°½ºÄÉÀÏ¿ë

Features
  • Capacity range from 5,000 to 15,000kg
  • Economy price
  • Nickel plated alloy steel construction
  • PVC Wire jacket
  • Protection class IP67
Options
  • Digital Load Cell
  • Hi-temperature Load Cell
Specifications
GRADE
UNITS
E C2/15
C3
C4
Rated Capacites
kgf
5tf, 10tf, 15tf
Rated output
Zero balance
§Æ/v
§Æ/v
2.0¡¾0.004
0¡¾0.02
Total error
Creep for 30minute
Temperature effect on
Zero value shift
Output value shift
%
%

%/10¡É
%/10¡É
0.050
0.0500

0.0014
0.0040
0.030
0.0250

0.0010
0.0012
0.020
0.0170

0.0010
0.0010
0.015
0.0120

0.0007
0.0007
Excitation
Recommended
Maximum
Resistance
Input
Output
Insulation

V
V

§Ù
§Ù
§Û

10
15

800¡¾40
700¡¾7
>5,000
Compensated temperature range
Operating temperature range
¡É
¡É
-10 to +40
-20 to +80

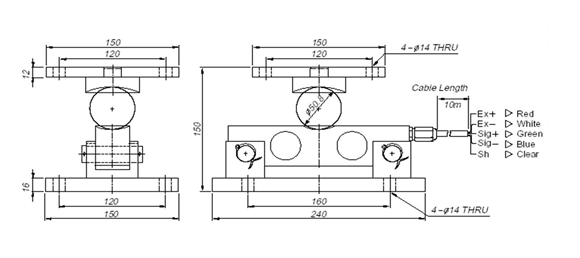

Dimensions
