• 로드셀

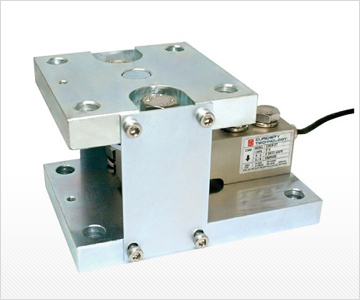

CBSB TW Accessory

Features
  • Ball type
  • High resolution
  • Easy replacement
Material
  • OP1 : Steel
  • OP2 : Stainess steel

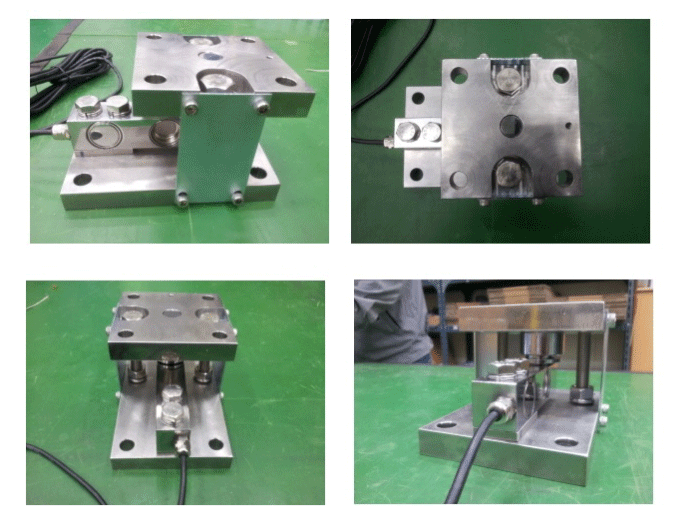

Manual
  • Rise the Upper Plate by using the supporters at both sides and join it with the Base plate
  • Untie the upper bolt of the supporter and Place the upper ball cup over the steel Ball
  • Check the level of the load cell

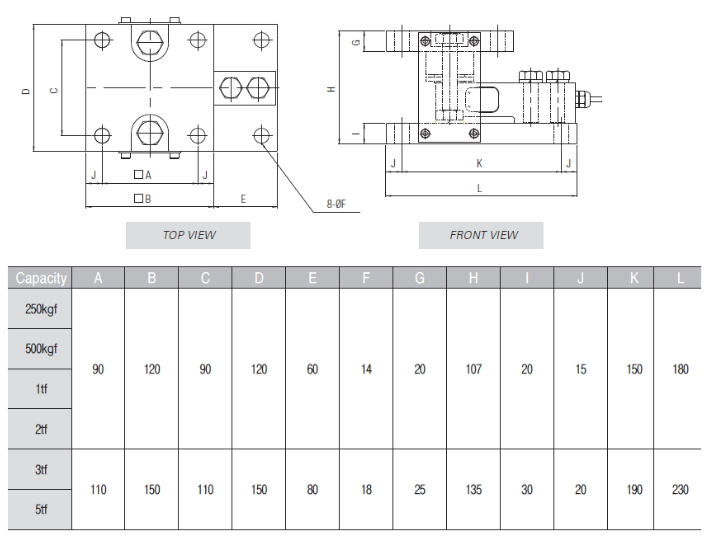

Dimensions
