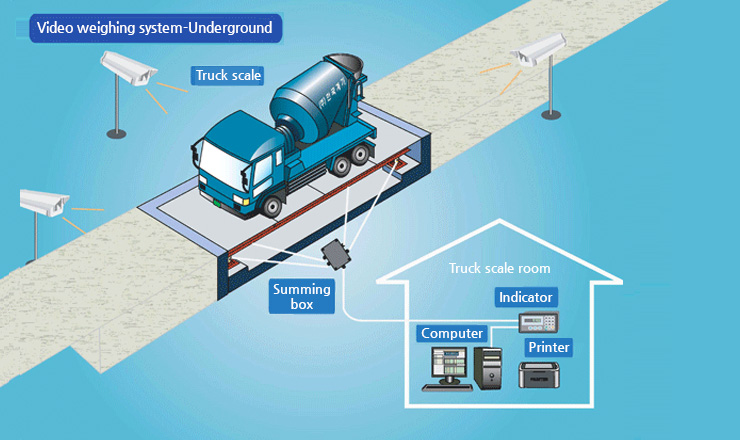

  • Truck ScaleUnderground - Video weighing system

Features
1. Various visual information such as the vehicle number and cargo box can be stored according to the location of the camera.
2. The visual information can be printed together on the metric table to secure reliability on the DATA.
3. Maximum 4CH of video is supported.
4. Various reports and metric tables according to user's needs can be printed.


Composition
  • Simple design and various shortcut keys are configured to be produced for user's convenience.
  • The result value can be printed based on various search options such as date, client, item name, vehicle number, and input / output.
  • Conversion to Excel function is added to enable efficient management on the data.
  • The client code and item code function enhanced the convenience in input, and recent client and item are automatically produced when inputting the vehicle number to minimize the input.
¡ØOption

Can be converted to Excel
Server client support system



Installation cases
Korea Rural Community
Corporation-Dangjin
Eco mission-Seosan Livestock Promotion Institute
-Jeju Island
Seocheon Resource Circulation
Center-Seocheon
SAEROM-Jinju

KyungDong Navien-Pyeongtaek Samho Environmental Technology-Yong In Engsteel-Asan Boryeong City Waste Treatment Plant-Boryeong gscaltex-jinju


Specifications

Maximum indication (ton) Grid value (kg) Platform (mm) Applied vehicle
30 5 2,400 * 6,700 5 ton major axis
50 10 3,000 * 9,000 11 tons~25 tons
50 10 3,000 * 10,000 25 tons
50 / 60 10 3,000 * 15,000 Trailer
50 / 60 10 3,000 * 16,000 Trailer, bulk
50 / 60 / 80 10 3,000 * 18,000 Pull car
80 / 100 10 / 20 3,000 * 20,000 Special major axis, etc.
200 50 3,000 * 22,000 Truck, heavy vehicle, etc.
300 100 3,000 * 24,000 Special, truck, heavy vehicle, etc.
