Truck ScaleVehicle number recognition system

Korea Environment Corporation Incheon Gajwa Office

Weighing system and vehicle number recognition device linkage

High-performance vehicle number recognition device is linked to provide efficient weighing system such as in/out vehicle management.
Infrared LED is built in to enable vehicle number recognition in the night time.

Vehicle number recognition system specifications

1. Camera : 1.3 million pixel, infrared LED built-in
2. Recognition rate : Less than 0.5 seconds, 98% or higher

Weighing system and electric sign linkage

The contents indicated on the electric sign is also shown in the large-size display installed in the office for easy checking. Tolerance is set and carry-in amount is check to be automatically indicated, and the carry-in vehicle can be limited through the screen on the electric sign.

Electric sign specifications

1. 128 x 128 12 lines, Title 1 line
2. 3-color, outdoor, top luminance Korean electric sign

Large-size display specifications

1. 55" LED monitor
2. FULL HD, smart touch remote controller

Unattended weighing software

User oriented convenience and efficiency in weighing are maximized to be developed appropriately for various work environments.

Unattended weighing panel specifications

1. 3-stage display
2. RFID card, thermal printer applied
3. Temperature sensitive fan, heater built-in
4. Automatic announcement

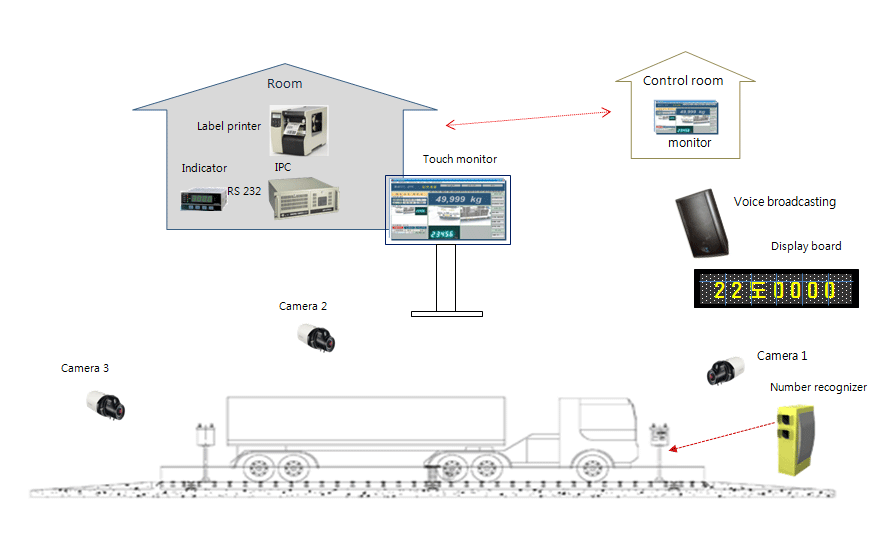

Composition

Installation(S-electron)


Unmanned car identification	Operation touch screen	Car number recognizer


Vehicle front shoot	Vehicle Rear shoot	Vehicle load shoot
